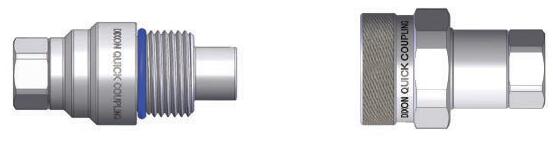

DIXON VEP Series Hydraulic Couplings VEP系列液壓快速接頭
Dixon Quick Couplings Dixon 快速接頭
VEP series VEP 系列
產品選項
Available with NPTF, BSPP, ORB, and Optional Code 62 Connections
FNPT, FBSPP & ORB 螺紋 (1/4” 至 2”)
尺寸: 1/4” - 2”
DIXON VEP Series Hydraulic Couplings VEP系列液壓接頭技術資料下載
Dixon Quick Couplings Dixon 快速接頭
材質：
1、部件使用鋼制（脫氧實心鋼）或316不銹鋼棒料（機加工）制成
2、不銹鋼卡環（定位環，扣環）和彈簧（制動彈簧）均為不銹鋼以確保最大程度的防銹，延長使用壽命
3、鋼制部件使用符合ROHS標準的三價鉻電鍍
互換Interchange:
Fully Interchangeable with Stucchi VEP-P/VEP-HD Series, DNP PST4 Series,
Voswinkel FT Series, and Parker FET-Series
Stucchi VEP-P/VEP-HD 系列, DNP PST4/FSI 系列,
Voswinkel FT 系列, Parker FET-系列
市場&應用Applications:
- Oil Field Equipment 石油裝備
- BOP Systems 放井噴系統
- Construction Equipment 建筑設備
- Excavators 挖掘設備
- Crane Systems 起吊設備
- Anywhere there’s a need for a tough,reliable hydraulic connection!
工況惡劣需要可靠連接設備
特點Features:

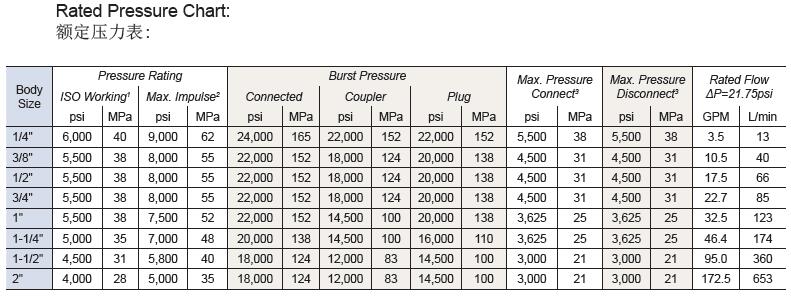

- Improved Connect and Disconnect Performance Up To 5,500psi
帶壓操作最大至5500psi

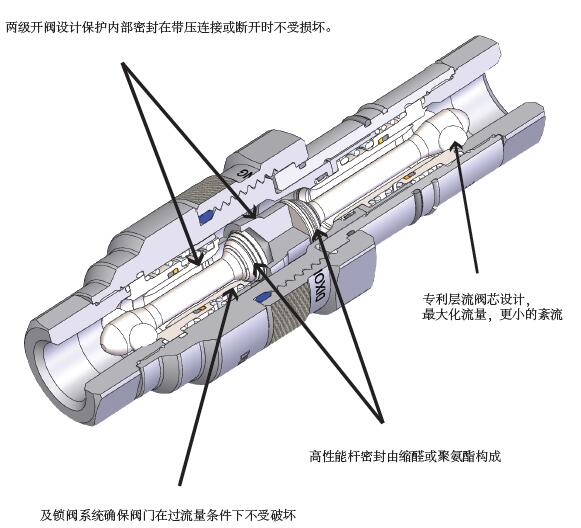

- Patented Valve Mechanism Optimizes Flow and Pressure Performance
專利層流閥芯設計，最大化流量，更小的紊流
- Improved Corrosion Resistance Using ROHS Compliant Trivalent Chrome Plating
鋼制部件使用符合ROHS標準的三價鉻進行電鍍
-Couplings Impulse tested in accordance with ISO7241-2 for 1,000,000 cycles connected
and 100,000 cycles disconnected at 133% of ISO Working Pressure.
在133%工作壓力下超過1,000,000次的連接及斷開脈沖沖擊
密封件材質Seal material：
Nipples have Nitrile -Energized PTFE valve seals, with a temperature range of -40°F to +250°F
(-40C° to +121°C) 公頭導電PTFE 墊圈, ( -40C° to +121°C)
- ?” nipples have molded Polyurethane valve seals, with a temperature range of -65°F to
+212°F ( -54°C to +100°C) ?” 公頭有聚氨酯密封(-54°C to +100°C)
- ?” to ?” valve stems have mo lded Acetal seals, with a temperature range of -65°F to
+212°F ( -54°C to +100°C) ?” 至 ?” 閥桿有縮 醛密封, ( -54°C to +100°C)
- 1” to 2” valve stems have molded Polyurethane seals, with a temperature range of -65°F to
+212°F ( -54°C to +100°C)1” 至2” 閥桿為聚氨酯密封(-54°C to +100°C)
DQC VEP-Series Female Coupler
Product Information
Select a Product
Part Number Thread Thread Size Body Size Length Flow
Part Number Thread Thread Size Body Size Length Flow
| 2VEPBF2 |
Female BSPP |
1/4"- 19 |
1/4" |
2.14" (54.4mm) |
3.5 GPM (13 L/min) |
| 2VEPF2 |
Female NPTF |
1/4"-18 |
1/4" |
2.14" (54.4mm) |
3.5 GPM (13 L/min) |
| 2VEPOF3 |
Female ORB |
9/16"- 18 |
1/4" |
2.14" (54.4mm) |
3.5 GPM (13 L/min) |
| 3VEPBF3 |
Female BSPP |
3/8"- 19 |
3/8" |
2.55" (64.8mm) |
10.5 GPM (40 L/min) |
| 3VEPBF4 |
Female BSPP |
1/2"- 14 |
3/8" |
2.77" (70.4mm) |
10.5 GPM (40 L/min) |
| 3VEPF3 |
Female NPTF |
3/8"-18 |
3/8" |
2.55" (64.8mm) |
10.5 GPM (40 L/min) |
| 3VEPF4 |
Female NPTF |
1/2"-14 |
3/8" |
2.77" (70.4mm) |
10.5 GPM (40 L/min) |
| 3VEPOF4 |
Female ORB |
3/4"- 16 |
3/8" |
2.77" (70.4mm) |
10.5 GPM (40 L/min) |
| 4VEPBF4 |
Female BSPP |
1/2"- 14 |
1/2" |
3.08" (78.2mm) |
17.5 GPM (66 L/min) |
| 4VEPBF6 |
Female BSPP |
3/4"- 14 |
1/2" |
3.38" (85.9mm) |
17.5 GPM (66 L/min) |
| 4VEPF4 |
Female NPTF |
1/2"-14 |
1/2" |
3.08" (78.2mm) |
17.5 GPM (66 L/min) |
| 4VEPF6 |
Female NPTF |
3/4"-14 |
1/2" |
3.38" (85.9mm) |
17.5 GPM (66 L/min) |
| 4VEPOF4 |
Female ORB |
3/4"- 16 |
1/2" |
3.08" (78.2mm) |
17.5 GPM (66 L/min) |
| 4VEPOF5 |
Female ORB |
7/8"- 14 |
1/2" |
3.18" (80.8mm) |
17.5 GPM (66 L/min) |
| 4VEPOF6 |
Female ORB |
1-1/16"- 12 |
1/2" |
3.58" (90.9mm) |
17.5 GPM (66 L/min) |
| 6VEPBF6 |
Female BSPP |
3/4"- 14 |
3/4" |
3.37" (85.6mm) |
22.7 GPM (85 L/min) |
| 6VEPF6 |
Female NPTF |
3/4"-14 |
3/4" |
3.37" (85.6mm) |
22.7 GPM (85 L/min) |
| 6VEPOF6 |
Female ORB |
1-1/16"- 12 |
3/4" |
3.37" (85.6mm) |
22.7 GPM (85 L/min) |
| 8VEPBF8 |
Female BSPP |
1"- 11 |
1" |
3.89" (98.8mm) |
32.5 GPM (123 L/min) |
| 8VEPF8 |
Female NPTF |
1"- 11-1/2 |
1" |
3.89" (98.8mm) |
32.5 GPM (123 L/min) |
| 8VEPOF8 |
Female ORB |
1-5/16"- 12 |
1" |
3.89" (98.8mm) |
32.5 GPM (123 L/min) |
| 10VEPBF10 |
Female BSPP |
1-1/4"- 11 |
1-1/4" |
4.40" (111.8mm) |
46.4 GPM (174 L/min) |
| 10VEPF10 |
Female NPTF |
1-1/4"- 11-1/2 |
1-1/4" |
4.40" (111.8mm) |
46.4 GPM (174 L/min) |
| 10VEPOF10 |
Female ORB |
1-5/8"- 12 |
1-1/4" |
4.40" (111.8mm) |
46.4 GPM (174 L/min) |
| 12VEPBF12 |
Female BSPP |
1-1/2"- 11 |
1-1/2" |
5.28" (134.1mm) |
95 GPM (360 L/min) |
| 12VEPF12 |
Female NPTF |
1-1/2"- 11-1/2 |
1-1/2" |
5.28" (134.1mm) |
95 GPM (360 L/min) |
| 12VEPOF12 |
Female ORB |
1-7/8"- 12 |
1-1/2" |
5.28" (134.1mm) |
95 GPM (360 L/min) |
| 16VEPBF16 |
Female BSPP |
2"- 11 |
2" |
9.42" (239.3mm) |
172.5 GPM (653 L/min) |
| 16VEPF16 |
Female NPTF |
2"- 11-1/2 |
2" |
9.42" (239.3mm) |
172.5 GPM (653 L/min) |
| 16VEPOF16 |
Female ORB |
2-1/2"- 12 |
2" |
9.42" (239.3mm) |
172.5 GPM (653 L/min) |
VEP Series Flange Head Coupler
Product Information
Description: VEP-Series Code 62 Flange Head Couplers
Material: Steel
Part Number
Port
Body Size
6VEPFH6 3/4" 3/4"
8VEPFH8 1" 1"
10VEPFH10 1 1/4" 1 1/4"
12VEPFH12 1 1/2" 1 1/2"
16VEPFH16 2" 2"
VEP Series Flange Pad Coupler
Product Information
Description: VEP-Series Code 62 Flange Pad Coupler
Material: Steel
Part Number
Port
Body Size
6VEPFP6 3/4" 3/4"
8VEPFP8 1" 1"
10VEPFP10 1 1/4" 1 1/4"
12VEPFP12 1 1/2" 1 1/2"
16VEPFP16 2" 2"
DQC VEP-BOP Series Blowout Preventer Female Coupler
Product Information
- Material : Steel
- Seal : FKM
- Thread : Female NPTF
Select a Product
Part Number Thread Size Body Size Length Flow
Part Number Thread Size Body Size Length Flow
| 3VEPF3-BOP |
3/8"- 18 |
3/8" |
2.55" (64.8 mm) |
10.5 GPM (40 L/min) |
| 4VEPF4-BOP |
1/2"- 14 |
1/2" |
3.08" (78.2 mm) |
17.5 GPM (66 L/min) |
| 6VEPF6-BOP |
3/4"- 14 |
3/4" |
3.37" (85.6 mm) |
22.7 GPM (85 L/min) |
| 8VEPF8-BOP |
1"-11- 1/2 |
1" |
3.89" (98.8 mm) |
32.5 GPM (123 L/min) |
| 10VEPF10-BOP |
1-1/4"- 11-1/2" |
1-1/4" |
4.40" (111.8 mm) |
46.4 GPM (174 L/min) |
| 12VEPF12-BOP |
1-1/2"- 11-1/2" |
1-1/2" |
5.28" (134.1 mm) |
95.0 GPM (360 L/min) |
VEP Series Flange Pad Coupler
Product Information
Description: VEP-Series Code 62 Flange Pad Coupler
Material: Steel
Part Number
Port
Body Size
6VEPFP6 3/4" 3/4"
8VEPFP8 1" 1"
10VEPFP10 1 1/4" 1 1/4"
12VEPFP12 1 1/2" 1 1/2"
16VEPFP16 2" 2"
DQC VEP-Series Female Plug
Product Information
Select a Product
Part Number Thread Thread Size Body Size Length Flow
Part Number Thread Thread Size Body Size Length Flow
| VEP2BF2 |
Female BSPP |
1/4"- 19 |
1/4" |
2.67" (67.8mm) |
3.5 GPM (13 L/min) |
| VEP2F2 |
Female NPTF |
1/4"-18 |
1/4" |
2.67" (67.8mm) |
3.5 GPM (13 L/min) |
| VEP2OF3 |
Female ORB |
9/16"- 18 |
1/4" |
2.67" (67.8mm) |
3.5 GPM (13 L/min) |
| VEP3BF3 |
Female BSPP |
3/8"- 19 |
3/8" |
3.28" (83.3mm) |
10.5 GPM (40 L/min) |
| VEP3BF4 |
Female BSPP |
1/2"- 14 |
3/8" |
3.50" (88.9mm) |
10.5 GPM (40 L/min) |
| VEP3F3 |
Female NPTF |
3/8"-18 |
3/8" |
3.28" (83.3mm) |
10.5 GPM (40 L/min) |
| VEP3F4 |
Female NPTF |
1/2"-14 |
3/8" |
3.50" (88.9mm) |
10.5 GPM (40 L/min) |
| VEP3OF4 |
Female ORB |
3/4"- 16 |
3/8" |
3.50" (88.9mm) |
10.5 GPM (40 L/min) |
| VEP4BF4 |
Female BSPP |
1/2"- 14 |
1/2" |
3.87" (98.3mm) |
17.5 GPM (66 L/min) |
| VEP4BF6 |
Female BSPP |
3/4"- 14 |
1/2" |
4.07" (103.4mm) |
17.5 GPM (66 L/min) |
| VEP4F4 |
Female NPTF |
1/2"-14 |
1/2" |
3.87" (98.3mm) |
17.5 GPM (66 L/min) |
| VEP4F6 |
Female NPTF |
3/4"-14 |
1/2" |
4.07" (103.4mm) |
17.5 GPM (66 L/min) |
| VEP4OF4 |
Female ORB |
3/4"- 16 |
1/2" |
3.87" (98.3mm) |
17.5 GPM (66 L/min) |
| VEP4OF5 |
Female ORB |
7/8"- 14 |
1/2" |
3.97" (100.8mm) |
17.5 GPM (66 L/min) |
| VEP4OF6 |
Female ORB |
1-1/16"- 12 |
1/2" |
4.27" (108.5mm) |
17.5 GPM (66 L/min) |
| VEP6BF6 |
Female BSPP |
3/4"- 12 |
3/4" |
4.12" (104.6mm) |
22.7 GPM (85 L/min) |
| VEP6F6 |
Female NPTF |
3/4"-14 |
3/4" |
4.12" (104.6mm) |
22.7 GPM (85 L/min) |
| VEP6OF6 |
Female ORB |
1-1/16"- 12 |
3/4" |
4.12" (104.6mm) |
22.7 GPM (85 L/min) |
| VEP8BF8 |
Female BSPP |
1"- 11 |
1" |
4.95" (125.7mm) |
32.5 GPM (123 L/min) |
| VEP8F8 |
Female NPTF |
1"- 11-1/2 |
1" |
4.95" (125.7mm) |
32.5 GPM (123 L/min) |
| VEP8OF8 |
Female ORB |
1-5/16"- 12 |
1" |
4.95" (125.7mm) |
32.5 GPM (123 L/min) |
| VEP10BF10 |
Female BSPP |
1-1/4"- 11 |
1-1/4" |
5.43" (137.9mm) |
46.4 GPM (174 L/min) |
| VEP10F10 |
Female NPTF |
1-1/4"- 11-1/2 |
1-1/4" |
5.43" (137.9mm) |
46.4 GPM (174 L/min) |
| VEP10OF10 |
Female ORB |
1-5/8"- 12 |
1-1/4" |
5.43" (137.9mm) |
46.4 GPM (174 L/min) |
| VEP12BF12 |
Female BSPP |
1-1/2"- 11 |
1-1/2" |
6.63" (168.4mm) |
95 GPM (360 L/min) |
| VEP12F12 |
Female NPTF |
1-1/2"- 11-1/2 |
1-1/2" |
6.63" (168.4mm) |
95 GPM (360 L/min) |
| VEP12OF12 |
Female ORB |
1-7/8"- 12 |
1-1/2" |
6.63" (168.4mm) |
95 GPM (360 L/min) |
| VEP16BF16 |
Female BSPP |
2"- 11 |
2" |
11.08" (281.4mm) |
172.5 GPM (653 L/min) |
| VEP16F16 |
Female NPTF |
2"- 11-1/2 |
2" |
11.08" (281.4mm) |
172.5 GPM (653 L/min) |
| VEP16OF16 |
Female ORB |
2-1/2"- 12 |
2" |
11.08" (281.4mm) |
172.5 GPM (653 L/min) |
VEP Series Flange Head Plug
Product Information
Description: VEP-Series Code 62 Flange Head Plugs
Material: Steel
Part Number
Port
Body Size
VEP6FH6 3/4" 3/4"
VEP8FH8 1" 1"
VEP10FH10 1 1/4" 1 1/4"
VEP12FH12 1 1/2" 1 1/2"
VEP16FH16 2" 2"
VEP Series Flange Pad Plug
Product Information
Description: VEP-Series Code 62 Flange Pad Plug
Material: Steel
Part Number
Port
Body Size
VEP6FP6 3/4" 3/4"
VEP8FP8 1" 1"
VEP10FP10 1 1/4" 1 1/4"
VEP12FP12 1 1/2" 1 1/2"
VEP16FP16 2" 2"
DQC VEP-BOP Series Blowout Preventer Female Plug
Product Information
Material: Steel
Seal: FKM
Thread: Female NPTF
Select a Product
Select a Product
Part Number Thread Size Body Size Length Flow
| VEP3F3-BOP |
3/8"- 18 |
3/8" |
3.28" (83.3 mm) |
10.5 GPM (40 L/min) |
| VEP4F4-BOP |
1/2"- 14 |
1/2" |
3.87" (98.3 mm) |
17.5 GPM (66 L/min) |
| VEP6F6-BOP |
3/4"- 14 |
3/4" |
4.12" (104.6 mm) |
22.7 GPM (85 L/min) |
| VEP8F8-BOP |
1"-11- 1/2 |
1" |
4.95" (125.7 mm) |
32.5 GPM (123 L/min) |
| VEP10F10-BOP |
1-1/4"- 11-1/2" |
1-1/4" |
5.43" (137.9 mm) |
46.4 GPM (174 L/min) |
| VEP12F12-BOP |
1-1/2"- 11-1/2" |
1-1/2" |
6.63" (164.4 mm) |
95.0 GPM (360 L/min) |
|
超低溫系列產品
3180038393
