Sendx傾角傳感器通過感知地球加速度在其測量軸上的分量大小，對載體傾斜角度的反應，產生相應變化的電信號，從而測量出物體角度信息。傾角傳感器有較穩定的零位置，可以準確的測量絕對校對（相對零位），避免較大程度誤差。產品在需要做角度測量、零位調整、水平調整和傾角姿態記錄的行業有廣泛的應用。Sendx的傾角傳感器由微機械加速度計傳感器、溫度傳感器、A/D轉換器、微處理器和存儲器等組成。產品設計緊湊，體積小,能夠在-40~100℃的工作范圍內穩定的輸出信號。測量的角度范圍高可達±120°，高分辨率可達到0.001°，輸出方式有RS485、CANOpen、Modbus、Profibus和各種模擬方式，可以便利地與市場主流的測量和控制裝置連接 -- 西安嘉岳自動化技術有限公司 | 西安嘉岳 | 西安嘉岳公司產品代理sendx傾角傳感器。
Sendx tilt sensor products measures the target object's angle information by the changes of electrical signals which are triggered by the acceleration(due to gravity) on the measurement axis. The tilt sensor has stable zero position, which can be used to calibrate the tilt information(relative to zero) of the target. Sendx tilt sensor products have a wide range of applications in angle measurement, the zero position adjustment, horizontal adjustment and angle posture recording industry.
Sendx tilt sensor consists of MEMS accelerometer sensor, temperature sensor, A/D converter, microprocessor and memory. The products have compact design and can be used in the -40~100 ℃ temperature range with very stable output signals. The range ability of the product can reach up to ± 120°,the highest resolution can reach up to 0.001°.We have output signals for choices, such as RS485, CANOpen, Modbus, Profibus and various analogue signals. The products are compatible with most of the measurement of control devices in the market.
|
|

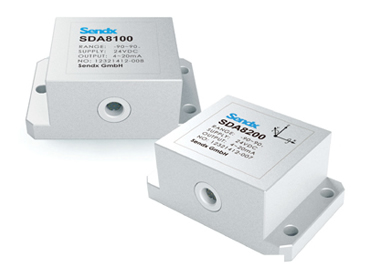

德國斯德克Sendx TYPE：SDA8100傾角傳感器
- 角度范圍：
0~±10°; ±20°; ±30°; ±40°; ±50°; ±60°…±120°
- 輸出信號：
4 ~ 20mA; 0 ~ 5Vdc; 0.5 ~ 4.5Vdc; RS485;
CANOpen; Modbus; Profibus
- 綜合精度：0.1%F.S; 0.25%F.S; 0.50%F.S
應用于航空、高速列車、工程機械和船舶等領域
|
德國斯德克Sendx TYPE：SDA8200傾角傳感器
- 角度范圍：
0~±10°; ±20°; ±30°; ±40°; ±50°; ±60°…±120°
- 輸出信號：
4 ~ 20mA; 0 ~ 5Vdc; 0.5 ~ 4.5Vdc; RS485;
CANOpen; Modbus; Profibus
- 綜合精度：0.1%F.S; 0.25%F.S; 0.50%F.S
應用于航空、高速列車、工程機械和船舶等領域 |
德國斯德克Sendx是西安嘉岳自動化技術有限公司代理的工業傳感器品牌之一，所有傾角傳感器產品均為原裝正品，Sendx原廠質量保證。如果您對斯德克Sendx傾角傳感器系列產品的價格、廠家、型號、圖片以及產品選型有任何疑問，歡迎[聯系我們]獲取有關德國斯德克Sendx傾角傳感器系列產品的新信息。
